Logic Gate ICs
SKU: RM000004

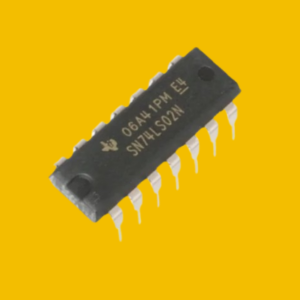

The 74LS02 Quad 2-Input NOR Gate is a 14 pin IC which contains four independent gates each of which performs the logic NOR function. The IC is a dual in - line package whose 14 & 7 no. pin is vcc&gnd, 2 & 3 in and 1 out, 5 & 6 in and 4 out, 8 9 in and 10 out, 11 & 12 in and 13 is..
₹ 25.00
( + 18% Gst Extra )₹ 29.50 (Inc GST)
SKU: RM000061

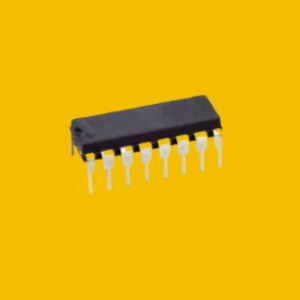

The 212 decoders are a series of CMOS LSIs for remote control system applications. They are paired with Holtek 212 series of encoders (refer to the encoder/decoder cross reference table). For proper operation, a pair of encoder/decoder with the same number of addresses and data format should be chos..
₹ 45.00
( + 18% Gst Extra )₹ 53.10 (Inc GST)
SKU: RM000060
The 212 encoders are a series of CMOS LSI'S for remote control system applications. They are capable of encoding information which consists of N address bits and 12N data bits. Each address/data input can be set to one of the two logic states. The programmed addresses/data are transmitted together w..
₹ 45.00
( + 18% Gst Extra )₹ 53.10 (Inc GST)
SKU: RM000050
74HC244B1 is Octal Buffer and Line Driver designed to be employed as memory address drivers, clock drivers and bus-oriented transmitters/receivers which provide improved PC board density.Features of 74HC244B1 Octal 3-State Buffer/Line Driver/Line Receiver:Operating Voltage Range 4.5V to 5V..
₹ 50.00
( + 18% Gst Extra )₹ 59.00 (Inc GST)
SKU: RM000049
74LS161 Synchronous 4-Bit Counter contains high-speed 4-bit synchronous counters. They are edge-triggered, synchronously presettable, and cascadable MSI building blocks for counting, memory addressing, frequency division and other applications. 74LS161 IC can be soldered directly to the circuit boar..
₹ 55.00
( + 18% Gst Extra )₹ 64.90 (Inc GST)
SKU: RM000048
74LS86 Quad 2 Input Exclusive OR Gate contains four independent gates each of which performs the logic XOR function. 74LS86 Quad 2 Input Exclusive OR Gate circuit is designed such that the OR operation of the input pins 1,2 , 4,5, 9,10 & 12,13 are produced on the pin 3, 6, 8 & 11 respectivel..
₹ 45.00
( + 18% Gst Extra )₹ 53.10 (Inc GST)
SKU: RM000047
74LS75 4-Bit Bi-Stable Latch contains latches are ideally suited for use as temporary storage for binary information between processing units and input/output or indicator units. Information present at a data (D) input is transferred to the Q output when the enable is HIGH, and the Q output will fol..
₹ 45.00
( + 18% Gst Extra )₹ 53.10 (Inc GST)
SKU: RM000046
74LS28 Quad 2-Input NOR contains four independent 2 input gates each of which performs the logic NOR function74LS28 IC can be soldered directly to the circuit board or can be mounted on a 14 pin IC base. 74LS28 Quad 2-Input NOR Buffer circuit is designed such that the NOR operation produced on the i..
₹ 35.00
( + 18% Gst Extra )₹ 41.30 (Inc GST)
SKU: RM000045
The 74LS12 Triple 3-Input Positive NAND Gates With Collector Outputs contains three 3 input independent gates each of which performs the positive logic NAND function. 74LS12 IC can be soldered directly to the circuit board or can be mounted on a 14 pin IC base. 74LS12 Triple 3-Input Positive NAND Ga..
₹ 35.00
( + 18% Gst Extra )₹ 41.30 (Inc GST)
SKU: RM000044
The 74LS11 Triple 3-Input AND Gatecontains three independent gates each of which performs the logic AND function. 74LS11 Triple 3-Input AND Gate IC can be soldered directly to the circuit board or can be mounted on a 14 pin IC base. 74LS11 Triple 3-Input AND Gate circuit is designed such that the AN..
₹ 35.00
( + 18% Gst Extra )₹ 41.30 (Inc GST)
SKU: RM000043
The 74LS10 Triple-3-Input NAND Gate contains three independent gates each of which performs the logic AND function. 74LS10 Triple-3-Input NAND Gate IC can be soldered directly to the circuit board or can be mounted on a 14 pin IC base. The 74LS10 Triple-3-Input NAND Gate circuit is designed such tha..
₹ 35.00
( + 18% Gst Extra )₹ 41.30 (Inc GST)
SKU: RM000042
The 74ls08 quad 2 input and gates contains four independent gates each of which performs the logic AND function. 74ls08 quad 2 input and gate IC can be soldered directly to the circuit board or can be mounted on a 14 pin IC base. The 74ls08 quad 2 input and gates circuit is designed such that the AN..
₹ 30.00
( + 18% Gst Extra )₹ 35.40 (Inc GST)
SKU: RM000701
CD4046 belongs to the CD4000 IC series. The CD4046 micropower phase-locked loop (PLL) consists of low power, linear, voltage-controlled oscillator (VCO), a source follower, a Zener diode, and two-phase comparators. The two-phase comparators have a common signal input and a common comparator input. T..
₹ 29.00
( + 18% Gst Extra )₹ 34.22 (Inc GST)
SKU: RM000700
The 74LS21 is an IC which contains two independent 4 input AND gate each of which performs the logic AND function.74LS21 Dual 4-Input Positive and Gates ICFeatures of 74LS21 Dual 4-Input Positive and Gates IC:Supply Voltage: 5.25 V.HIGH Level Input Voltage: 2 V.LOW Level Input Voltage: 0.8 V.HIGH Le..
₹ 35.00
( + 18% Gst Extra )₹ 41.30 (Inc GST)
SKU: RM000699
The 74LS04 is an IC which contains six independent gates each of which performs the logic INVERT function.Features of 74LS04 Hex Inverting Gates IC:Supply voltage: 4.5 v – 5.5 v.Ambient operating temperature: -55 to 125 Degree Centigrade.Applications of 74LS04 Hex Inverting Gates IC:DIY projects.Ele..
₹ 20.00
( + 18% Gst Extra )₹ 23.60 (Inc GST)
SKU: RM000562
The HT12A/E series encoder has capable of encoding information which consists of N address bits and 12N data bits. Each address/data input can be set to one of the two logic states.Features of HT12A/HT12E 212 Series Of Encoders:Operating voltage.2.4V~5V for the HT12A.2.4V~12V for the HT12E.Low power..
₹ 130.00
( + 18% Gst Extra )₹ 153.40 (Inc GST)
SKU: RM001508
The 74HC14 is a hex inverter with Schmitt-trigger inputs. This device features reduced input threshold levels to allow interfacing to TTL logic levels. Inputs also include clamp diodes, this enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigg..
₹ 19.00
( + 18% Gst Extra )₹ 22.42 (Inc GST)
SKU: RM018062
CD4027B is a single monolithic chip integrated circuit containing two identical complementary-symmetry J-K flip flops. Each flip-flop has provisions for individual J, K, Set, Reset, and Clock input signals. Buffered Q and Q signals are provided as outputs. This input output arrangement provides for ..
₹ 39.00
( + 18% Gst Extra )₹ 46.02 (Inc GST)
-800x600h.jpg "SN74118N INTEGRATED CIRCUIT DIP-16 Package")
SKU: RM018105
SN74118N INTEGRATED CIRCUIT DIP-16 PackageFeatures:IC Name: SN74118NPackage/Case: DIP-16..
₹ 39.00
( + 18% Gst Extra )₹ 46.02 (Inc GST)
SKU: RM017064
ULN2003 7 Darlington Transistor Arrays ICFeatures:IC Name: ULN2003Package/Case: DIP-16Note:Product Images are shown for illustrative purposes only and may differ from the actual product...
₹ 21.00
( + 18% Gst Extra )₹ 24.78 (Inc GST)
